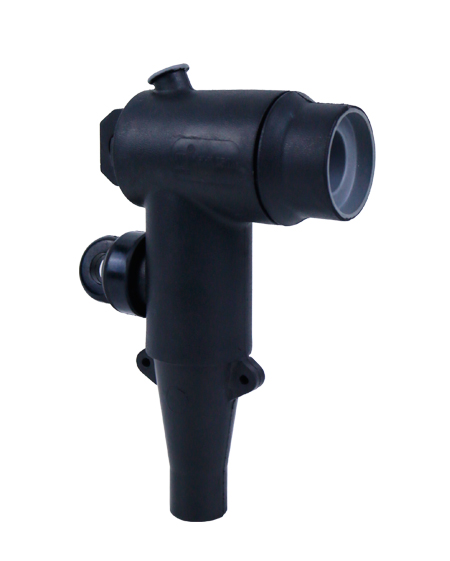

15kV 200A Deadbreak Elbow Connectors (Code name WEZT 15/250) is a products in complying with IEEE 386, Figure 4. It can operate in a system up to 17.5kV, 250A. Not only can this type of connector provide an excellent electrical properties and a wonderful stress control due to its safe and efficient design, a voltage test point is also availble for checking the circuit status.
| Voltage Class | 12kV | 17.5kV |
| Continuous Current | 250A | 250A |
| AC Withstand Voltage | 25.5kV for 5min | 39kV for 5min |
| Partial Discharge | 11kV, ≤10pC | 15kV ≤10pC |
| Impulse Withstand Voltage (10 times for each polarity) | 95kV | 95kV |
| Screen Resistance | ≤5000Ω | ≤5000Ω |
Manufactured from EPDM rubber, providing a fully screened separable connection when mated with proper bushing or plug.
Built-in capacitive test point allows an easy check of the circuit status.
Equipt with a fault indicator.
100% factory tested.
Tested in compliance with IEC60502.4.
In complying with IEEE 386, Figure 4.
