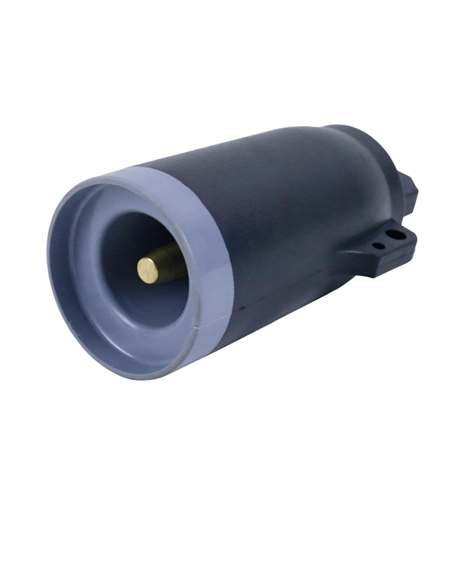

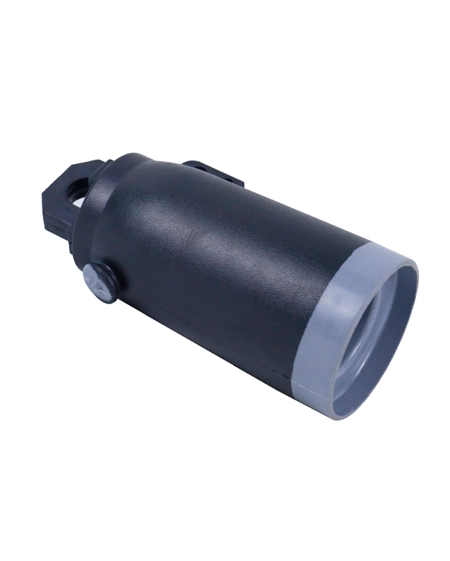

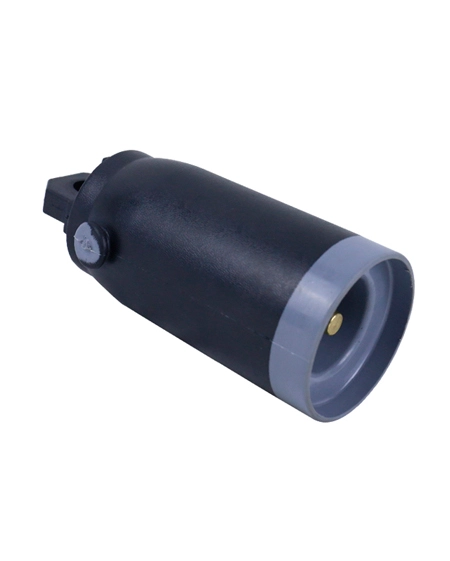

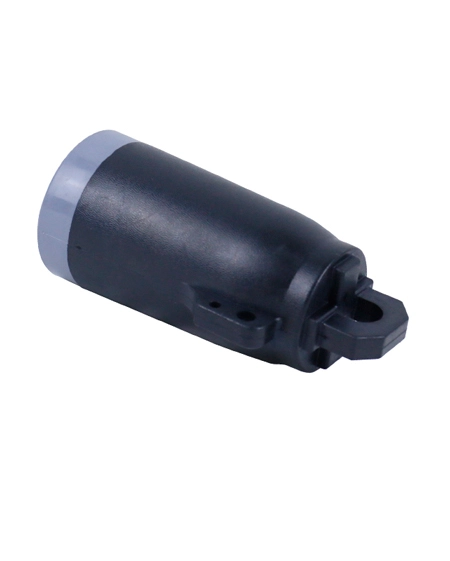

15kV 200A Insulated Cap

Name: 15kV 200A Insulated Cap
Brand: Shenzhen Woer Electric Technology Co., Ltd

The American-style 200A/600A insulating caps are designed for use on 200A/600A bushings' reserved openings or to seal bushings during maintenance when connectors have been removed. As an accessory component for bushings, they provide complete insulation and hermetic sealing protection for energized bushings, while offering dustproof and moisture-resistant sealing safeguards for de-energized bushings.

 Get a Quote  PDF Download

Specification of 15kV 200A Insulated Cap

Rated Voltage	15kV
AC Withstand Voltage	42kV for 1 min
Partial Discharge	15kV, ≤10pC
Impulse Withstand Voltage (10 times for each polarity)	95kV
Screen Resistance	≤5000Ω

Features of 15kV 200A Insulated Cap

Manufactured from high quality EPDM rubber.

Exhibits excellent thermal stability and thermodynamic properties.
