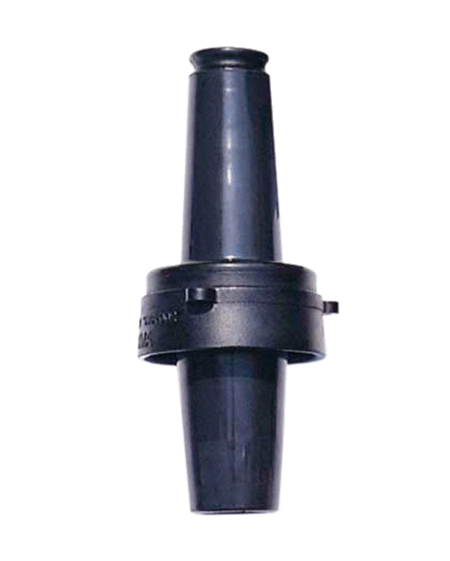

The American-style 200A single bushing connects to 200A bushing wells, designed for 200A electrical systems. It is widely used for high-voltage electrical connections in pad-mounted transformers, underground transformers, and other equipment. Its interface complies with IEEE 376 standard 200A bushing design requirements.
| Item | Bushing Insert |
| Rated Voltage(U0/U) | 8.3/14.4kV |
| Rated Current | 200A |
| AC Withstand Voltage | 34kV for 1min |
| Partial Discharge | 11kV, ≤3pC |
| Impulse Withstand Voltage (10 times for each polarity) | 95kV |
Fully insulated, fully sealed and fully screened.
The compression device ensures reliable operation and offers a more compact structural size compared to other configurations.
