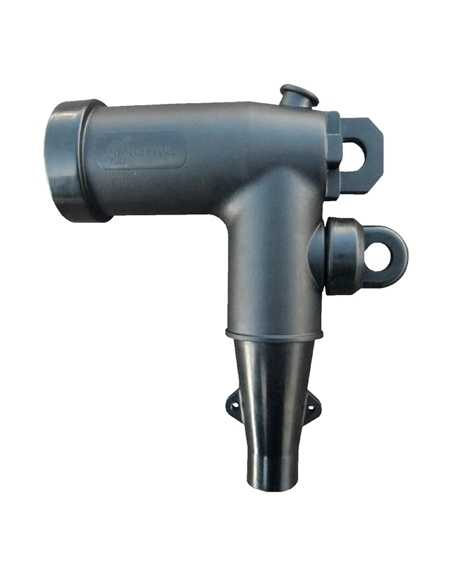

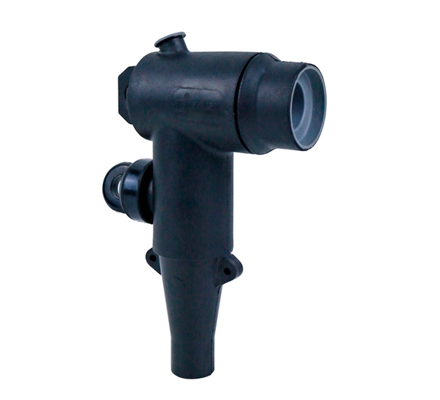

The American-style 200A elbow connector is designed for 200A electrical systems and widely used in high-voltage electrical connections for American-style pad-mounted transformers, ring main units (RMUs), cable distribution cabinets, underground transformers, and other electronic equipment. Compatible components include single-way bushings, double-way bushings, 200A busbar interfaces, and 200A interfaces for American T2 connectors, etc.
| Rated Voltage(U0/U) | 8.3/14.4kV |
| Rated Current | 200A |
| AC Withstand Voltage | 34kV for 1min |
| Partial Discharge | 11kV, ≤3pC |
| Impulse Withstand Voltage (10 times for each polarity) | 95kV |
| Switching Current | 14.4kV, 200A,10 times |
| Screen Resistance | ≤5000Ω |
Fully insulated, fully sealed and fully screened.
The compression device ensures reliable operation and offers a more compact structural size compared to other configurations.
Energized indicators or fault indicators may be installed at test points to indicate the equipment's live status and fault conditions.
The conducting rod connector is equipped with arc-extinguishing capability, allowing it to function as a load switch to interrupt currents up to 200A. However, it cannot trip fault currents.
