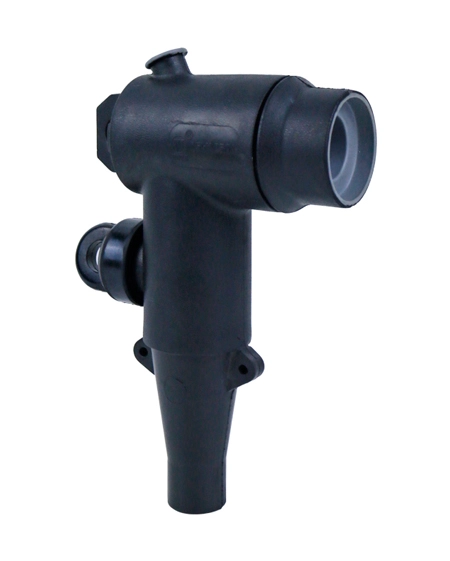

Suitable for European EN50180&50181 standard A type bushing interface, suitable for rated voltage 24kV and 15kV, rated current 250A electrical system, used for European ring main unit 250A outlet or use European ring main unit combined transformer outlet. Applicable cable cross-sectional area: 25~120mm².
| Insulation Range Code | Diameter over cable insulation φ(mm) | |
| Min. | Max. | |
| A | 16 | 18 |
| B | 17 | 21 |
| C | 20 | 24 |
| D | 23.5 | 27 |
| Conductor Cross-section (mm²) | Copper Lug (Hexagonal compression) | Bimetallic Lug (Hexagonal compression) |
| 25 | 01C | 01B |
| 35 | 02C | 02B |
| 50 | 03C | 03B |
| 70 | 04C | 04B |
| 95 | 05C | 05B |
| 120 | 06C | 06B |
| Technical Data | |||
| Voltage Class | 12kV | 17.5kV | 24kV |
| Continuous Current | 250A | 250A | 250A |
| AC Withstand Voltage | 28.5kV for 5min | 39kV for 5min | 54kV for 5min |
| Partial Discharge | 11kV, ≤10pC | 15kV, ≤10pC | 20kV, ≤10pC |
| Impulse Withstand Voltage (10 times for each polarity) | 95kV | 95kV | 125kV |
| Screen Resistance | ≤5000Ω | ≤5000Ω | ≤5000Ω |
Manufactured from EPDM rubber, providing a fully screened separable connection when mated with proper bushing or plug.

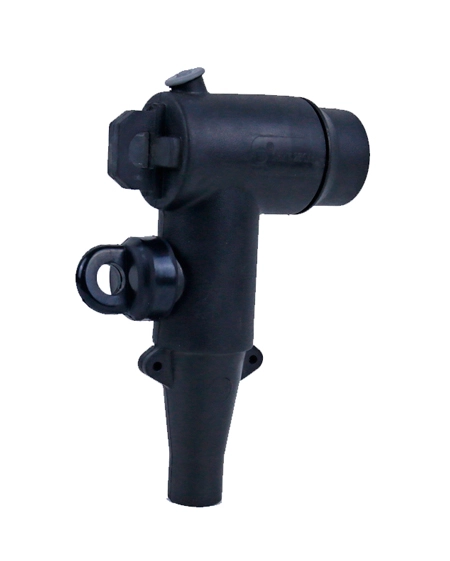

Structure: 90 degree bending design, saving space.
Save space.
Flexible installation.
Stable electrical performance.
High level of protection, adapt to a variety of environments.
