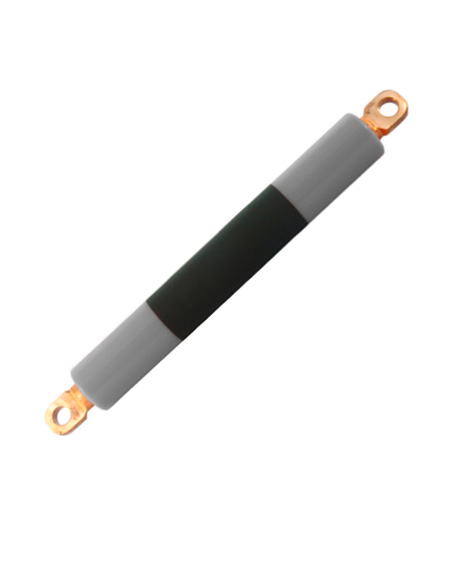

24kV Inner Cone Busbar Kits

Name: 24kV Inner Cone Busbar Kits
Brand: Shenzhen Woer Electric Technology Co., Ltd

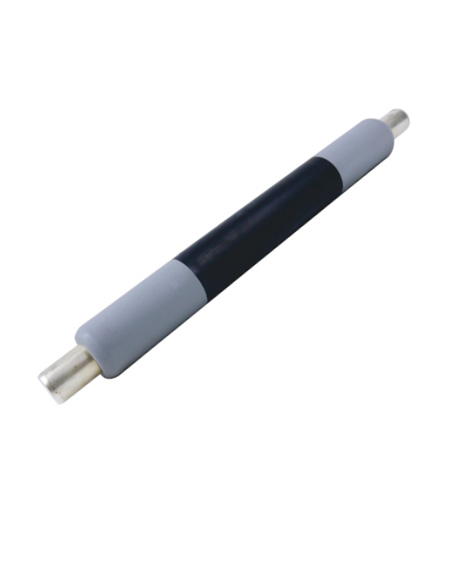

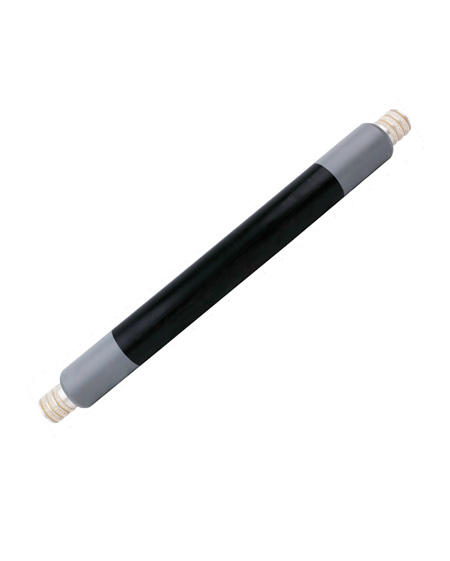

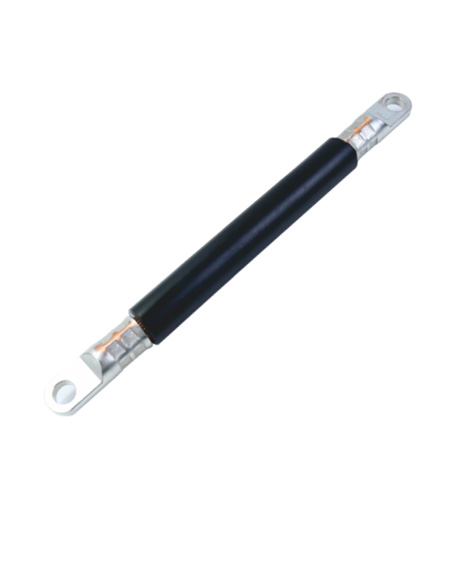

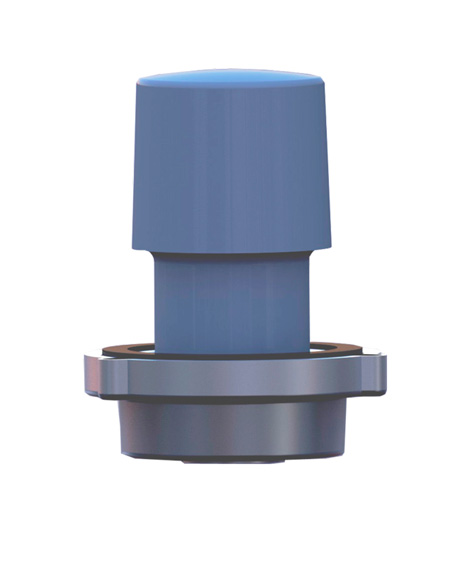

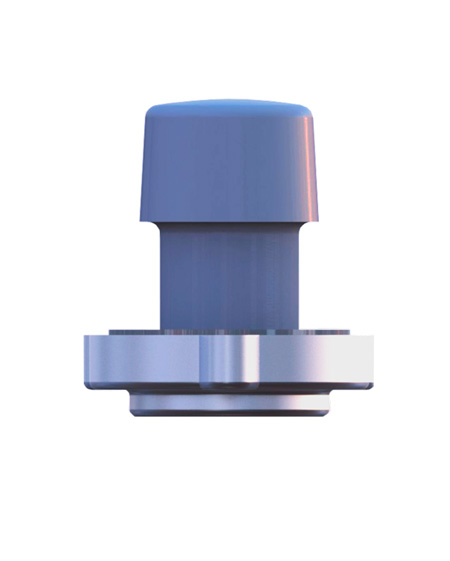

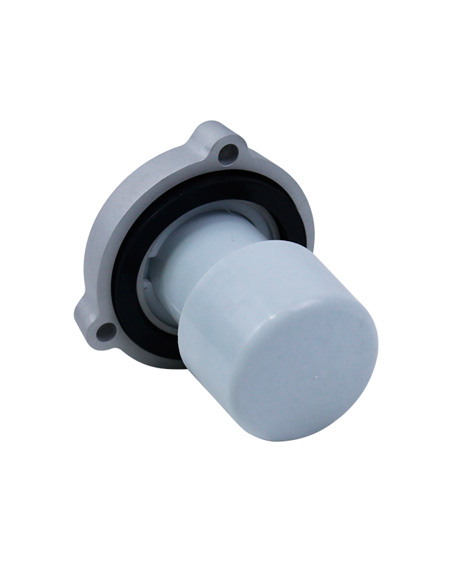

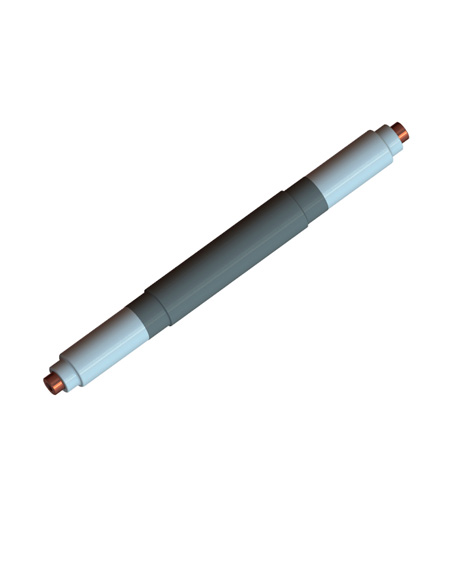

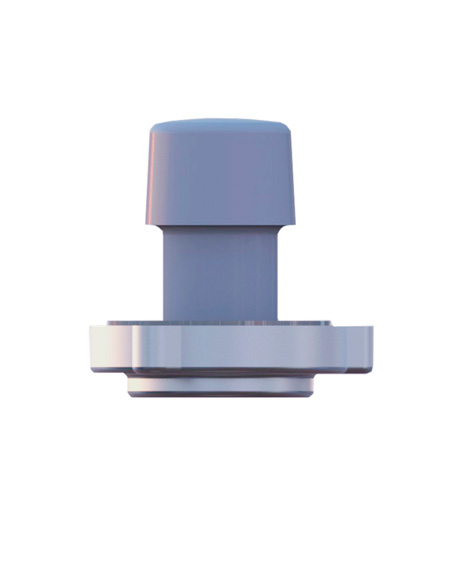

Inner cone busbar kits are suitable for the combined connection of ring main units to supply more branches for extension. Meanwhile, it is a prior option to combined ring main units. The voltage class of his type of Inner cone busbar kits are 24kV, consisting of Inner cone busbar insulator, inner cone busbar connector and inner cone busbar plug.

 Get a Quote

Specification of 24kV Inner Cone Busbar Kits

Item	Inner Cone Busbar Kits
Voltage Class	24kV
Rated Current	630A
AC Withstand Voltage	80kV for 1min
Partial Discharge	20kV, ≤10pC
Impulse Withstand Voltage (10 times for each polarity)	125kV
Screen Resistance	≤5000Ω
Temperature Rise	≤65K

Features of Inner Cone Busbar Kits

Perfect insulation.
