Engineered to EN 50181 Type A specifications, WOER's 250A plug-in interfaces support live-line monitoring via flange contacts and seamlessly mate with all European 250A elbows/straight connectors. Constructed with ozone-resistant EPDM/Silicone hybrid material (-40°C~+100℃ operation), they deliver IP68 protection for 24kV oil-immersed/SF6 equipment, certified to IEC 60502-4 & IEEE 386 standards.

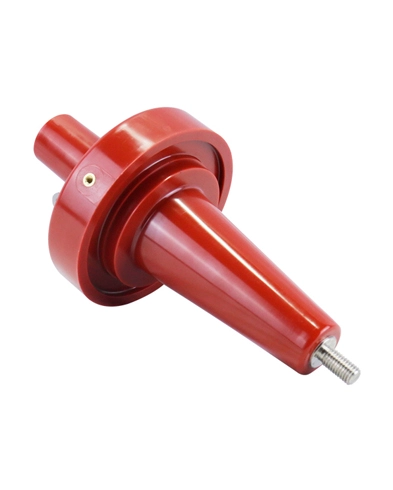

One bushing end is sealed SF6 or high pressure insulated oil, one end can be connected to European 250A elbow connector or European 250A straight connector.
Before installation, ensure that the cable is powered off, and use electrical inspection equipment to confirm.
Remove dirt and oxidation layer from cable surface to ensure good contact.
Check plugs and cable ends for damage and make sure all parts are in good condition.
Use special installation tools to avoid damage to the equipment.
Strictly follow the installation procedures provided by the manufacturer.
Ensure that the waterproof sealing ring is installed in place to prevent water.
Use the torque wrench to tighten the bolts according to the specified torque to avoid too tight or too loose.
