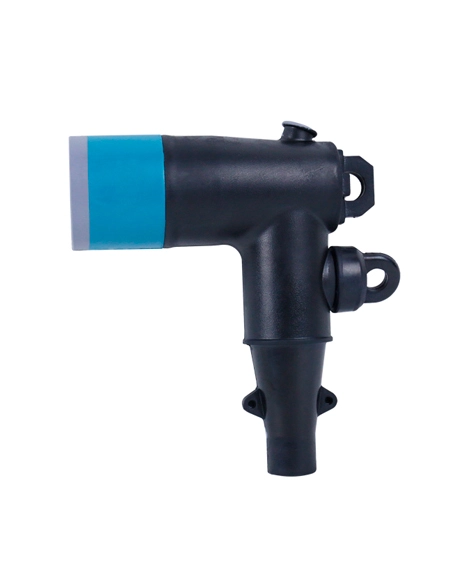

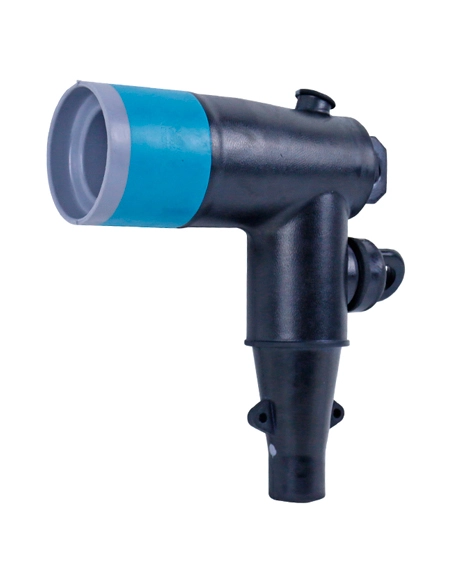

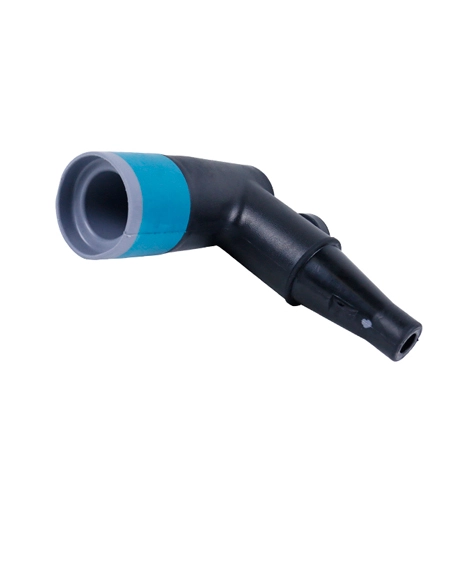

The American-style 200A elbow connector is engineered for use in 200A electrical systems and is commonly employed in high-voltage power connections for equipment such as American-style pad-mounted transformers, ring main units (RMUs), cable distribution cabinets, underground transformers, and related electronic devices. It is compatible with components including single-way and double-way bushings, 200A busbar interfaces, and 200A interfaces designed for American T2 connectors, among others.
| Rated Voltage(U0/U) | 15.2/26.3kV |
| Continuous Current | 200A |
| AC Withstand Voltage | 40kV for 1min |
| Partial Discharge | 19kV, ≤3pC |
| Impulse Withstand Voltage (10 times for each polarity) | 125kV |
| Switching Current | 26.3kV, 200A,10 times |
| Screen Resistance | ≤5000Ω |
Fully insulated, fully sealed and fully screened.
Energized indicators or fault indicators may be installed at test points to indicate the equipment's live status and fault conditions.
The conducting rod connector is equipped with arc-extinguishing capability, allowing it to function as a load switch to interrupt currents up to 200A. However, it cannot trip fault currents.
Manufactred from high quality EPDM rubber, and 100% factory tested.
