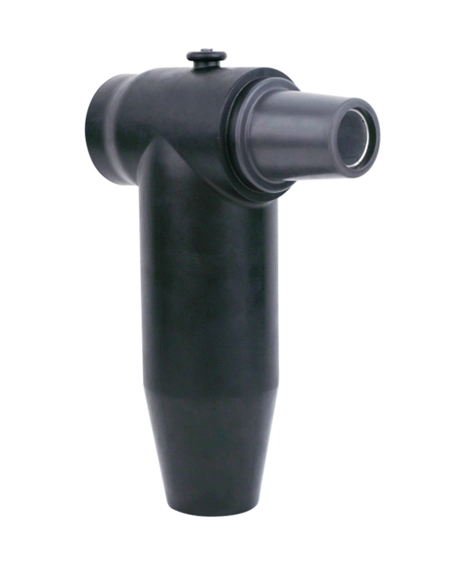

This bolted separable rear connector is suitable for electrical system rated 36kV with continuous current rated 630A. It cannot be connected with equipment or bushings. Instead, this rear connector works as a connector extension, operating in step with another one or the one with surge arrester.
Ordering instruction
The ordering formula as followed:
| 1 | 2 | 3 | 4 | |
| W | 36 | CBK |
Step 1
Choose the highest system voltage: 36kV
Step 2
Select the connector body size and insulation range code from Table D that fits the diameter over cable insulation
Step 3
Select the conductor code from Table C for the conductor size and type
Step 4
Select the package. 1: 1pc/kit; 3: 3pcs/kit.
Table D
Connector body size and insulation range code
| Connector Body Size | Insulation Range Code (For Cable adaptor) | Applicable Diameter over cable insulation φ(mm) | |
| Min. | Max. | ||
| 1 | A | 20 | 23 |
| B | 23 | 25 | |
| C | 25 | 28.5 | |
| D | 28 | 31.5 | |
| E | 31 | 35 | |
| F | 34 | 37 | |
| G | 36.5 | 39.5 | |
| H | 39 | 42.5 | |
| 2 | I | 36.5 | 40 |
| J | 39.5 | 43 | |
| K | 43 | 47.4 | |
| L | 47.4 | 49.5 | |
Table C
Conductor Code
| Conductor Cross-section (mm²) | Lug Code | |||||
| Copper Lug Code (Hexagonal compression) | Connector Body Size* | Aluminum Lug Code (Mechanical Bolted) | Connector Body Size* | |||
| 35 | 02C | 1 | M1 (AULZ25-95-16) | - | - | 1 |
| 50 | 03C | - | - | |||
| 70 | 04C | M2 (AULZ70-240-16) | - | |||
| 95 | 05C | - | ||||
| 120 | 06C | - | - | |||
| 150 | 07C | - | - | |||
| 185 | 08C | - | - | |||
| 240 | 09C | - | - | |||
| 300 | 10C | - | - | M4 (AULZ300-630-16) | 2 | |
| 400 | 11C | - | - | |||
| 500 | 12C | 2 | - | - | ||
| 630 | 13C | - | - | |||
Ordering example:
The cable is 36kV, 3*95mm² aluminum conductor with core insulation diameter of 29mm. Order W36CBK1DM13.
Note:
Sealing or solderless grounding kits shall be ordered separately.
Please add "-X" for cable with copper wire shield without armour, like W36CBK1D05C3-X.
Feel free to contact us for detailed information.
*Please make sure the lug code mates with the connector body size if you need to repack the connector kits.
Technical Data
| Voltage Class | 36kV | |
| Continuous Current | 630A | 1250A* |
| AC Withstand Voltage | 81kV for 5 min | |
| Partial Discharge | 30kV, ≤10pc | |
| Impulse Withstand Voltage (10 times for each polarity) | 170kV | |
| Screen Resistance | ≤5000Ω | |
Note: * refer to the condition when installed on an appropriate equipment bushing.
High Voltage Rating
Feature: Rated voltage of 36kV, suitable for medium-voltage power systems.
Advantage: Meets the requirements of medium-voltage distribution networks, ensuring safe power transmission.
High Current-Carrying Capacity
Feature: Rated current of 630A, supporting high-power transmission.
Advantage: Suitable for high-load scenarios, ensuring stable operation of power systems.
Bolted Connection Design
Feature: Bolted-type connection for secure and reliable installation.
Advantage: Provides stable electrical connections, reduces contact resistance, and prevents overheating and energy loss.
Compact Structure Design
Feature: Compact structure with a small footprint.
Advantage: Ideal for space-constrained distribution cabinets or cable junction boxes, optimizing equipment layout.
