This product can be used in various environments, has excellent waterproof sealing effect, has a solid shell, and is extremely easy to install.
Max.system voltage: 72.5kV, applicable to 120~1600mm²
Max.system voltage: 126kV, applicable to 240 ~1600mm²
Max.system voltage: 145kV, applicable to 240 ~1600mm²
Max.system voltage: 252kV, applicable to 400 ~2500mm²

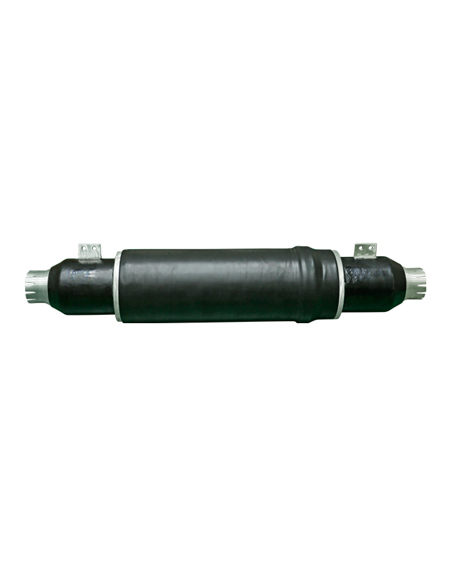

Composite type cable joint body is vacuum injection molded by thermosetting resin or insulated rubber, of which wholly dry construction prevents potential oil-leakage.
One-piece design and outer metal enclosure provides such properties as water-proofing, damp resistance and mechanical stress resistance to maintain operation under various conditions.
Compact structure and small volume save its installation space. Installation available in cable well, cable duct or direct bury.
Wholly prefabricated in factory. No filler and insulated gas is required. Simply insert two prepared cables of any cross-sections into the joint body.
Type tested according to IEC60840, GB/T11017, IEC62067, GB/T18890.
