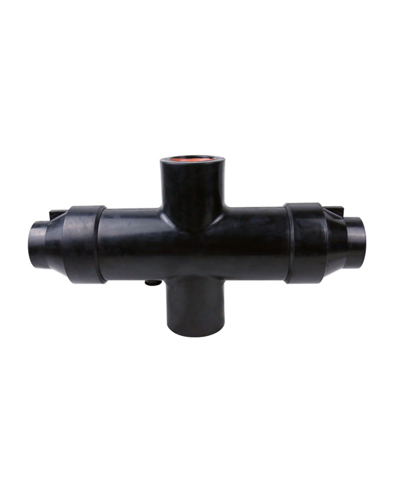

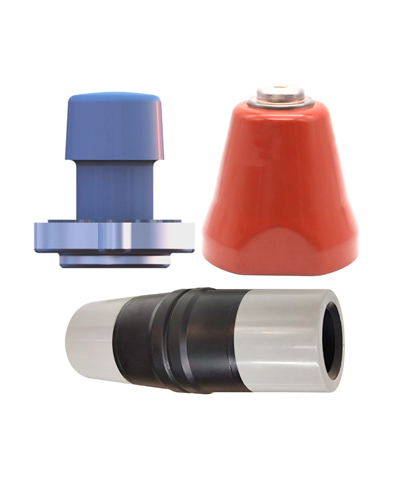

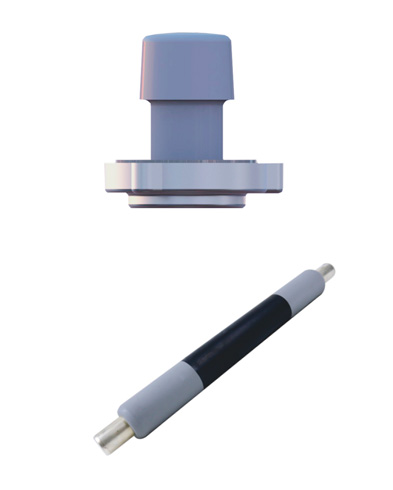

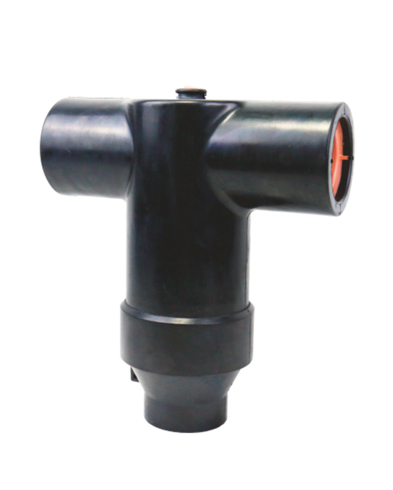

Busbar Connecting System is manufactured from silicone rubber, mainly applied to the connection for SF6 insulated switchgear with metal housing. To mate with the bushing interfaces conform to type C in EN50180, EN50181. Inner Cone Busbar Kits are suitable for the combined connection of ring main units to supply more branches for extension. Meanwhile, It is a prior option to combined ring main units.
By providing additional sealing, grounding for the separable connector and cable, Insulated Plugs, Sealing & Grounding Kits for Connectors and Cable Sheath Voltage Limiter reinforce the safety for the power transmission.
By providing up-to-time monitoring for the connector and cable, Energized Indicator, Fault Indicator, Earth Fault and Short Circuit Indicator can shows the status of the power cable.
Energized Indicators are installed on the Separable Connectors. If the indicator flickers, It means that the circuit is energized.
Fault Indicator indicates the circuit status with flicker warning the fault circuit to shorten the fault inspecting time.
The Earth fault and Short Circuit Indicator is consist of 1 panel, 3 sensors detecting short-circuit and one sensor for grounding fault. More Visualized and multifuncitonal operation improves working efficiency significantly.
