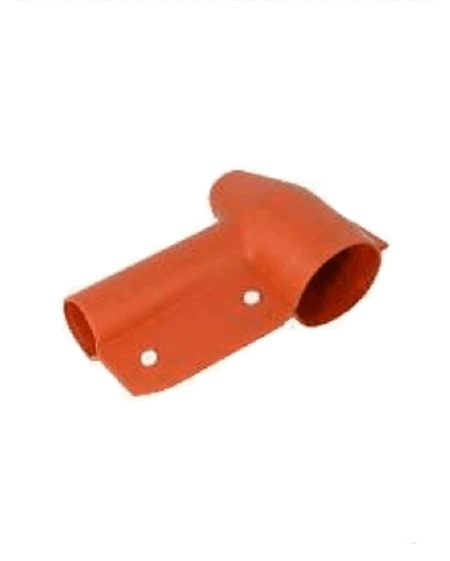

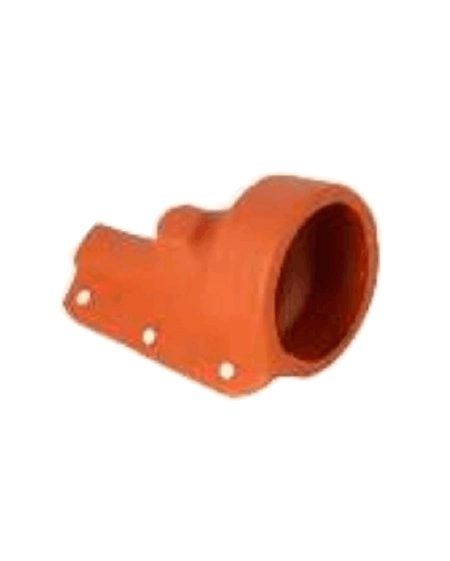

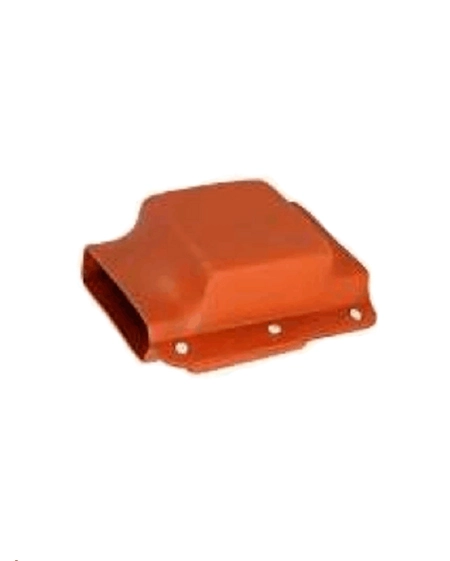

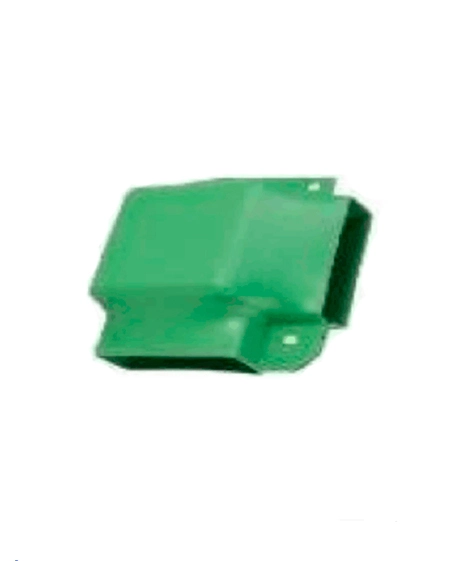

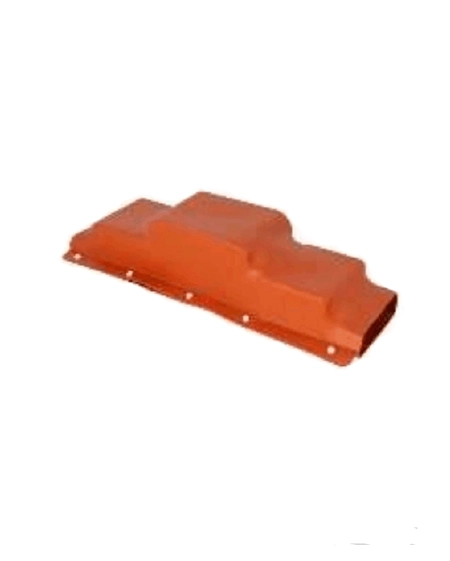

The Basbar Cover is a housing device used to protect cable joints or basbar connection points, mainly used in power distribution systems. It plays a key role in power transmission and distribution, effectively preventing short circuit, leakage or mechanical damage at the joint, while providing water, dust and heat dissipation.
| Voltage | Spec. (For single layer busbar overlapping) | L±5 | W±5 | H±5 | H1±3 |
| lkV,10kV,35kV | T type 4*30 | 110 | 35 | 50 | 10 |
| I type 4*40 | 125 | 45 | 55 | 13 | |
| L type 4*40 | 75 | 45 | 60 | 13 | |
| T type 4*40 | 125 | 45 | 55 | 13 | |
| I type 5*50 | 135 | 55 | 60 | 12 | |
| L type 5*50 | 90 | 55 | 65 | 13 | |
| T type 5*50 | 140 | 55 | 55 | 13 | |
| I type 6*60 | 165 | 65 | 65 | 13 | |
| L type 6*60 | 100 | 65 | 75 | 13 | |
| T type 6*60 | 150 | 65 | 60 | 13 | |
| I type 8*80 | 193 | 85 | 70 | 13 | |
| L type 8*80 | 120 | 85 | 70 | 12 | |
| T type 8*80 | 175 | 85 | 70 | 13 | |
| I type 10*100 | 190 | 105 | 70 | 13 | |
| L type 10*100 | 145 | 105 | 80 | 12 | |
| T type 10*100 | 200 | 105 | 70 | 12 | |
| I type 10*120/125 | 220 | 125 | 62 | 14 | |
| L type 10*120/125 | 165 | 125 | 75 | 14 | |
| T type 10*120/125 | 225 | 125 | 72 | 14 |
| Voltage | Spec. (For dual-layer busbar overlapping) | L±5 | W±5 | H±5 | H1±3 |
| 1kV,10kV,35kV | I type 5*50*2 | 154 | 55 | 90 | 32 |
| L type 5*50*2 | 89 | 55 | 75 | 30 | |
| T type 5*50*2 | 154 | 55 | 90 | 32 | |
| I type 6*60*2 | 146 | 62 | 90 | 38 | |
| L type 6*60*2 | 105 | 65 | 90 | 34 | |
| T type 6*60*2 | 150 | 65 | 90 | 36 | |
| I type 8*80*2 | 172 | 82 | 85 | 36 | |
| L type 8*80*2 | 128 | 85 | 90 | 32 | |
| T type 8*80*2 | 195 | 85 | 93 | 38 | |
| I type 10*100*2 | 195 | 105 | 100 | 36 | |
| L type 10*100*2 | 148 | 103 | 100 | 33 | |
| T type 10*100*2 | 205 | 105 | 105 | 37 | |
| I type 10*120/125*2 | 220 | 125 | 90 | 44 | |
| L type 10*120/125*2 | 165 | 125 | 115 | 35 | |
| T type 10*120/125*2 | 223 | 125 | 97 | 35 |
Manufactured from cross linked polyolefin.
Widely used to protect complex busbar connections where tube products cannot be applied.
Offering tailor-made solutions against specific requirements.
Color: red, yellow, green, black.
According to customer drawings the special products for a variety of inlet and outlet of transformers, fuses, switches, surge arresters and other protective cover are available.
