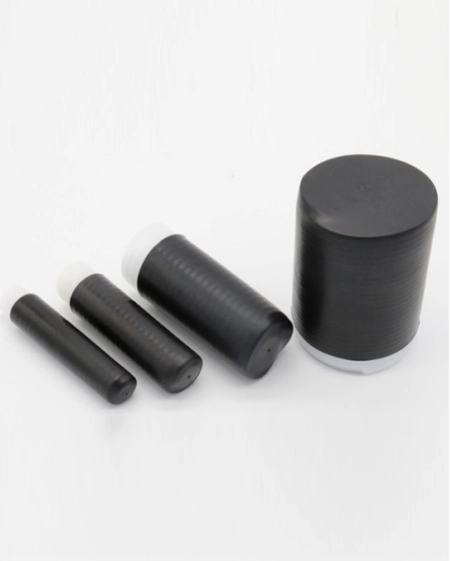

The Cold Shrink End Cap is a high performance product for sealing and protecting cable terminals. It uses cold shrinkage technology and relies on the memory properties of elastic materials to automatically shrink without heating during installation, tightly wrapping the cable terminal and providing excellent sealing and insulation. Cold shrinkable caps are widely used in power, communication, transportation and other industries for cable terminal protection to prevent moisture, dust and other pollutants from entering the cable interior.
Selection Table
| Product No. | ID as Supplied(±2)/mm | ID after Fully Recovered (Max)/mm | Application Range/mm | Lengthafter Fully Recovered(±5)/mm |
| WCSEC-1 | φ20 | φ12 | φ13-φ15 | 100 |
| WCSEC-2 | φ28 | φ16 | φ18-φ23 | 100 |
| WCSEC-3 | φ47/φ56 | φ23 | φ25-φ38/φ25-φ48 | 100 |
| WCSEC-4 | φ80 | φ46 | φ48-φ70 | 100 |
Manufactured from EPDM rubber.
Meeting a variety of configuration requirements.
Providing sealing protection over multi-core cable ends.
Simple and fast installation, no tools required.
Sealing tight, high rebound even after prolonged years of agingand exposure.
No mastic or tape required.
High resistance to fungus, acid, alkalis and ozone.
No training required for installation.
