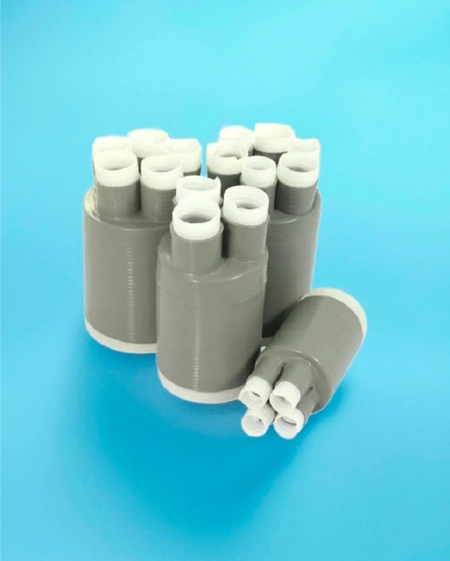

Cold Shrink Silicone Rubber Breakout is a high performance cable branch protection product for insulation, sealing and mechanical protection of cable branch joints. It is made of silicone rubber material, with excellent elasticity, weather resistance and electrical properties, suitable for cable systems in a variety of complex environments.
| Spec. | ID before shrunk/mm | ID after shrunk/mm | |||
| Finger φF | Body φC | Finger φF | Body φC | ||
| 2-core breakout | WCSF2-1(1#) | φ20±2 | φ47±2 | φ7⁺³₀ mm | φ14⁺³₀ mm |
| WCSF2-2(2#) | φ25±2 | φ65±2 | φ9⁺³₀ mm | φ19⁺³₀ mm | |
| WCSF2-3(3#) | φ32±2 | φ80±2 | φ12⁺³₀ mm | φ25⁺³₀ mm | |
| WCSF2-4(4#) | φ47±2 | φ110±3 | φ17⁺³₀ mm | φ35⁺³₀ mm | |
| 3-core breakout | WCSF 3-(-1)(-1#) | φ20±2 | φ56±2 | φ9⁺³₀ mm | φ19⁺³₀ mm |
| WCSF 3-(-2)-(2#) | φ25±2 | φ65±2 | φ10⁺³₀ mm | φ23⁺³₀ mm | |
| WCSF3-1(1#) | φ32±2 | φ80±2 | φ15⁺³₀ mm | φ37⁺³₀ mm | |
| WCSF3-2(2#) | φ35±2 | φ88±2 | φ17⁺³₀ mm | φ44⁺³₀ mm | |
| WCSF3-3(3#) | φ40±2 | φ104±2 | φ20⁺³₀ mm | φ51⁺³₀ mm | |
| WCSF3-4(4#) | φ47±2 | φ120±2 | φ24⁺³₀ mm | φ60⁺³₀ mm | |
| WCSF3-5(5#) | φ60±2 | φ140±2 | φ28⁺³₀ mm | φ73⁺³₀ mm | |
| WCSF3-6(6#) | φ65±2 | φ150±2 | φ30⁺³₀ mm | φ75⁺³₀ mm | |
| WCSF3-7(7#) | φ70±2 | φ165±2 | φ30⁺³₀ mm | φ75⁺³₀ mm | |
| 4-core breakout | WCSF 4-1(1#) | φ20±2 | φ60±2 | φ7⁺³₀ mm | φ21⁺³₀ mm |
| WCSF 4-2(2#) | φ25±2 | φ70±2 | φ9⁺³₀ mm | φ29⁺³₀ mm | |
| WCSF 4-3(3#) | φ32±2 | φ88±2 | φ11⁺³₀ mm | φ41⁺³₀ mm | |
| WCSF 4-4(4#) | φ47±2 | φ120±2 | φ16⁺³₀ mm | φ46⁺³₀ mm | |
| 5-core breakout | WCSF 5-1(1#) | φ20±2 | φ70±2 | φ7⁺³₀ mm | φ27⁺³₀ mm |
| WCSF 5-2(2#) | φ25±2 | φ88±2 | φ9⁺³₀ mm | φ37⁺³₀ mm | |
| WCSF 5-3(3#) | φ35±2 | φ110±3 | φ12⁺³₀ mm | φ48⁺³₀ mm | |
| WCSF 5-4(4#) | φ40±2 | φ120±3 | φ13⁺³₀ mm | φ49⁺³₀ mm | |
| 6-core breakout | WCSF 6-1(1#) | φ32±2 | φ104±3 | φ10⁺³₀ mm | φ39⁺³₀ mm |
| WCSF6S-0(1#) | Finger 1φ28±2 | φ104±3 | φ10⁺³₀ mm | φ39⁺³₀ mm | |
| Finger 2φ35±2 | |||||
Manufactured from silicone rubber.
Simple and fast installation meeting a variety of configuration requirements.
Providing sealing protection over multi-core cable crutch, including 2-3-, 4-, 5-, 6-core breakouts.
