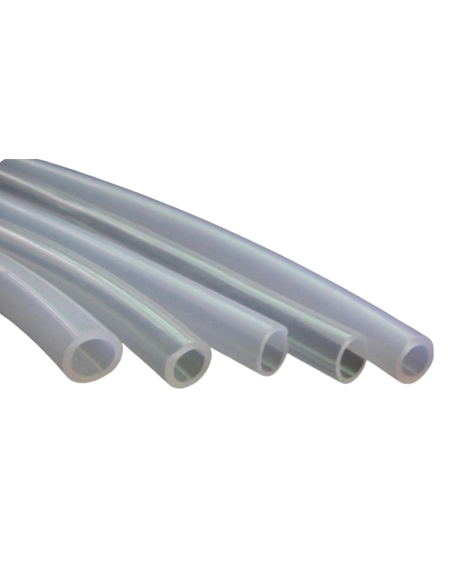

Electronic Silicone Rubber Tube is a tubular material made of silicone rubber, which is widely used in electronic, electrical, medical, automotive and other fields. Its excellent performance makes it ideal for many demanding environments.
Selection Table
| Product No. | D(mm) | W.T.&Dielectric Voltage(mm) | |||
| ≥2500V | ≥4000V | ≥6000V | ≥7000V | ||
| φ0.8 | 0.8±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ1.0 | 1.0±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ1.5 | 1.5±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ2.0 | 2.0±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ2.5 | 2.5±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ3.0 | 3.0±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ3.5 | 3.5±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ4.0 | 4.0±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ4.5 | 4.5±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ5.0 | 5.0±0.20 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ5.5 | 5.5±0.20 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ6.0 | 6.0±0.20 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ6.5 | 6.5±0.20 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ7.0 | 7.0±0.20 | 一 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ7.5 | 7.5±0.20 | 一 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ8.0 | 8.0±0.25 | 一 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
| φ9.0 | 9.0±0.25 | 一 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
Service temperature: -60℃-200℃.
Conform to RoHS.
Flexible, high temperature resistance and corona resistance.
Standard color: transparent, red, blue, white, grey and green.
