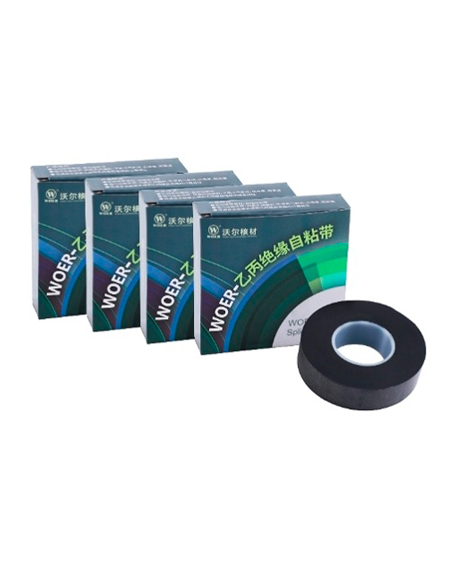

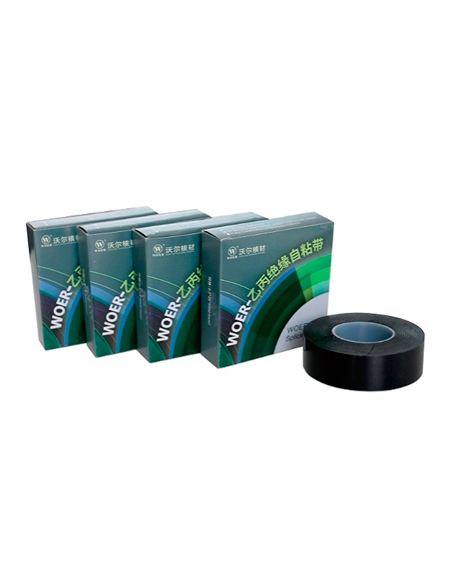

WOER EPR self-adhesive insulation tape is made of ethylene propylene rubber, which is self-fusing tape. It also widely used for cable terminationd and joints rebuilding and protection for bushing.
| No. | Item | Typical Value | ||||
| 1 | Tensile strength(room temperature) MPa | 3.88 | ||||
| 2 | Elongation at break(room temperature) % | 1190 | ||||
| 3 | Dielectric strength kV/mm | 37.12 | ||||
| 4 | Dielectric constant | 2.717 | ||||
| 5 | Dielectric loss | 0.0017 | ||||
| 6 | Volume resistivity Ω-cm | 1.03×10¹⁶ | ||||
| 7 | Self-fusing(23°C, 24h) | 0.032 | ||||
| 8 | Thermal stress(130°C, 1h) | No crack | ||||
| 7 | Color | Black | ||||
| 8 | Shelf Life | 2 years | ||||
Made of ethylene propylene rubber, which is self-fusing tape.
Excellent electric performance, good resistance to ultraviolet radiation, ectric corona, high temperature and weathering.
Suitable for XLPE and EPR cable overloading conditions.
Superior dielectric strength and low dielectric loss. Applicable to HV cable insulation protect cables from overloading conditions.
Excellent tensile strength and elongation rate, which makes good tensile performance without fall-off.
