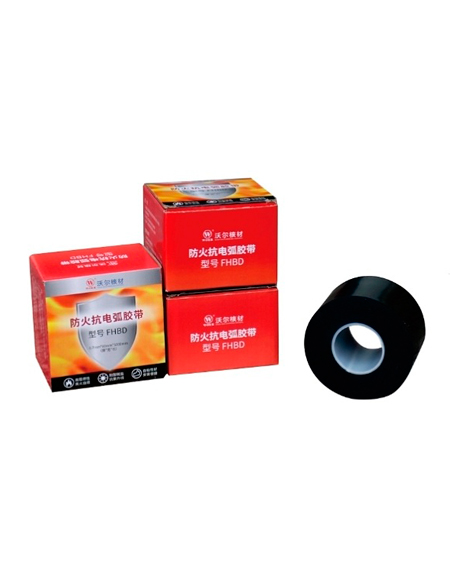

Self-adhesive flame retardant and arc proofing tape is a self-adhesive tape with fireproof, has excellent flame retardant function with high oxygen index. The flame on the tapes will be extinguished right after being deviated from fire source, and then the tapes can act as heat shield or fire-proof plate, in that case, the flame can't spread and the cable can be well protected.
| No. | Property | Typical value | |||||||||||
| Mechanical Capacity Before Aging | |||||||||||||
| 1 | Tensile strength MPa | 6.1 | |||||||||||
| 2 | Elongation at break % | 630 | |||||||||||
| Mechanical Capacity After Aging (Condition: 100°C +2°C/168h) | |||||||||||||
| 3 | Max Change of tensile strength after aging % | 6.6 | |||||||||||
| 4 | Max Change of Elongation at break after aging % | 14 | |||||||||||
| 5 | Low temperature tensile strength (-15°C ±12°C) % | 163 | |||||||||||
| 6 | Water resistance | Soaked for 15d, no foaming, no wrinkles, no lamination, no crack | |||||||||||
| T | Acid resistance | Soaked for 7d, no foaming, no wrinkles, no lamination, no crack | |||||||||||
| 8 | Alkali resistance | Soaked for 7d, no foaming, no wrinkles, no lamination, no crack | |||||||||||
| 9 | Salt tolerance | Soaked for 7d, no foaming, no wrinkles, no lamination, no crack | |||||||||||
| 10 | Self-adhesive | No shedding | |||||||||||
| 11 | Oxygen index % | 50.6 | |||||||||||
| 12 | Carbonized height m | 0.58 | |||||||||||
| 13 | Dielectorni Strength kV/mm | 25.31 | |||||||||||
| 14 | Flame resistance | FV-0 | |||||||||||
| 15 | Shelf life | 2 years | |||||||||||
Excellent self-adhesive function when spirally wrapped on cable surfaces.
Excellent formability, the product is shown as a form of elastomer withoutard fiber.
Hand injury can be well avoided with quality material. The product is alsoasy to install.
The product can be spirally wrapped easily without any wrinkles, and also bles and irregular shaped accessories perfectly.
Excellent function of waterproofing, acid resistance, alkali resistance, splerance and UV-stability, all of these can offer long-term protection for cables.
Thinner and lighter application can significantly reduce the cable loapd.
