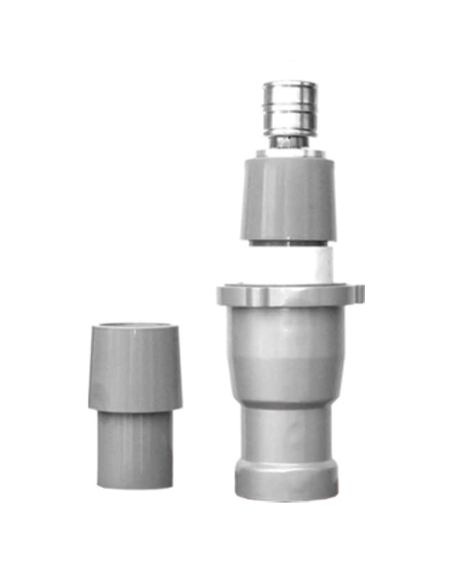

Inner cone plug-in terminations are suitable for C-GIS or transformers. They are used to connect power cables and equipment to provide a stable channel for the safe transportation of electricity.
Selection Table
| Rated Voltage | Main Body | Core Number | Part No. |
| 26/35kV | 3# | 3 | 35kV WCBN-3-3×50~630 |
| 1 | 35kV WCBN-3-1×50~800 | ||
| 2# | 3 | 35kV WCBN-2-3×50~185 | |
| 1 | 35kV WCBN-2-1×50~185 | ||
| 27.5kV | 3# | 1 | 27.5kV WCBN-3-1×150~400 |
| 18/30kV | 3# | 3 | 30kV WCBN-3-3×35~630 |
| 1 | 30kV WCBN-3-1×35~800 | ||
| 2# | 3 | 30kV WCBN-2-3×35~185 | |
| 1 | 30kV WCBN-2-1×35~185 | ||
| 12/20kV | 3# | 3 | 20kV WCBN-3-3×35~630 |
| 1 | 20kV WCBN-3-1×35~800 | ||
| 2# | 3 | 20kV WCBN-2-3×35~185 | |
| 1 | 20kV WCBN-2-1×35~185 | ||
| 6/10, 8.7/10 or 8.7/15kV | 3# | 3 | 10kV WCBN-3-3×35~630 |
| 1 | 10kV WCBN-3-1×35~800 | ||
| 2# | 3 | 10kV WCBN-2-3×35~185 | |
| 1 | 10kV WCBN-2-1×35~185 |
Note: The final determination factor is the cable insulation diameter.
Premould stress control cone of silicone rubber with 100% factory tested.
Metal protective shell on tail to provide great mechanical protection and fully shielding.
Adopting integral compression structure of tail tube and spring to ensure enough interface force between the stress control cone and bushing.
