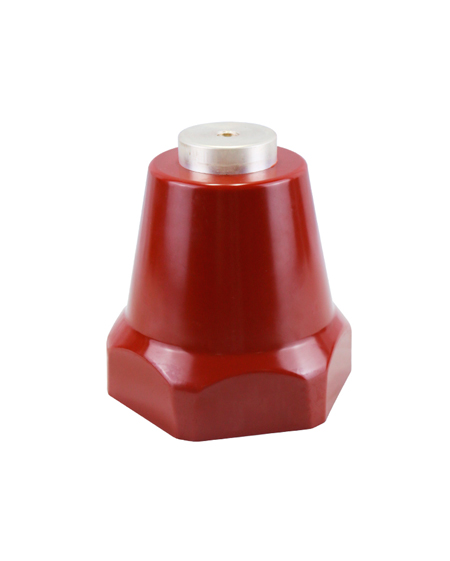

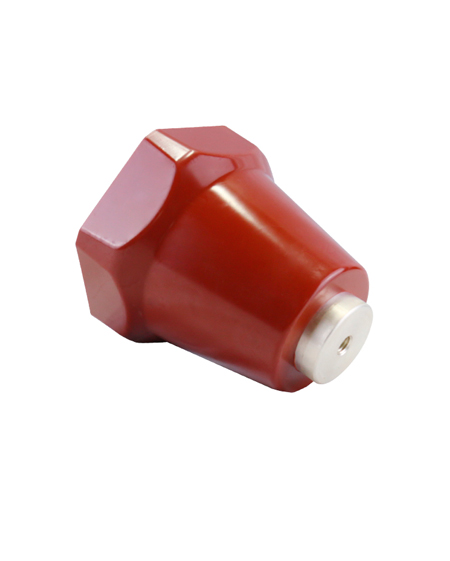

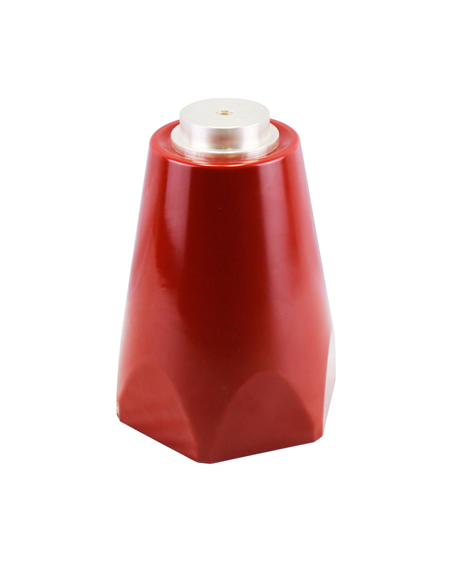

The insulated bushings are made of epoxy resin and high-quality copper materials. It has perfect electrical connection and insulation properties and is suitable for Inner Cone Plug-in Terminations.
Referred Dimension
| Item | Part No. | |||
| WNJT-1 | WNJT-2 | WNJT-3 | ||
| Outline | L1(mm) | 140 | 140 | 217 |
| L2(mm) | 137 | 137 | 165 | |
| Conductor | ΦD(mm) | 36 | 39 | 55 |
| Installation | Installation Position for BushingΦ1(mm) | 10 | 102 | 113 |
| Number of Installation Hole n(pc) | 3 | 3 | 6 | |
| Installation Position for TerminationΦ2(mm) | 95 | 102 | 130 | |
| Number of Installation Hole N(pcs) | 3 | 3 | 124 | |
| Installation Position for Live Part VerificationΦ3(mm) | 95 | 95 | 3 | |
| Number of Installation Hole m(pcs) | 3 | 3 | 3 | |
Conforming to EN 50181&50180.
Connecting to high voltage conductor of C-GIS cabinets or transformers.
Compact design, fully insulated and no maintenance.
