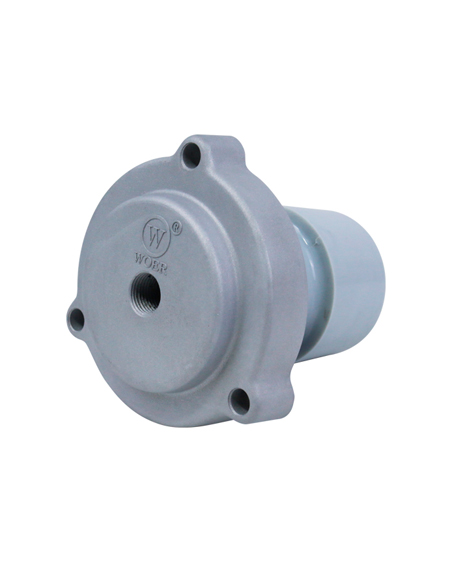

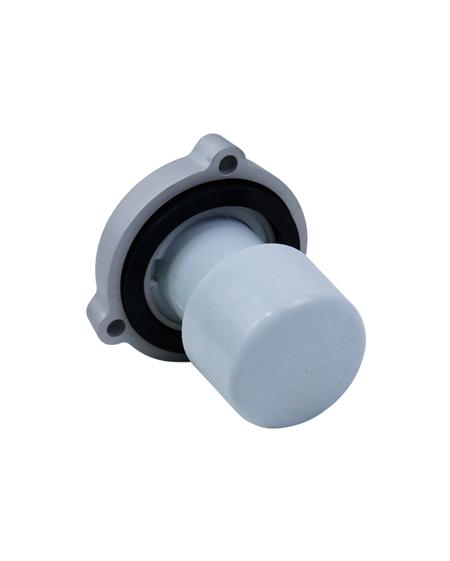

The insulated inserts are made of high-quality silicone material and has perfect insulation and sealing properties.
Technical Data
| Item | Part No. | |||
| WMT-1 | WMT-2 | WMT-3 | ||
| Maximum System Voltage(Um) | kV | 36 | 42 | 42 |
| AC Withstand Voltage | 50Hz,for 5min(kV) | 81 | 117 | 117 |
| Partial Discharge | 1.73U0 | ≤10pC | ≤10pC | ≤10pC |
| Impulse Withstand Voltage (10 times for each polarity) | 1.2/50μs(kV) | 170 | 200 | 200 |
Conforming to EN 50181 &50180.
To seal and insulate inner cone insulated bushing used for spare outlet port.
