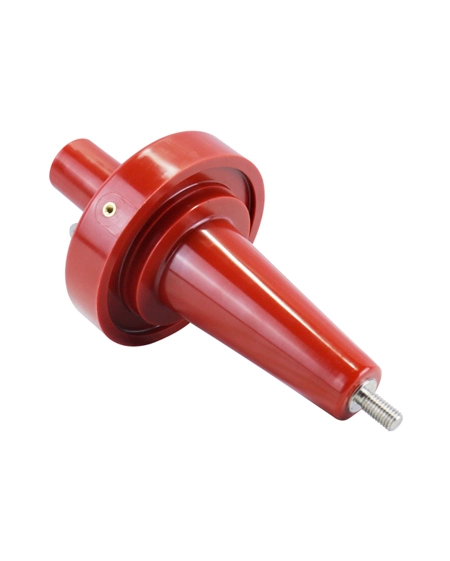

The Interface A Bushing (250A) WETGZ-24 250 is a high-performance connection component used in electrical equipment, which is mainly used for fixing, sealing and insulation between cables and equipment.
The product is suitable for voltage classes of 12kV and 24kV and current 250A. According to the national standards GB/T4109, GB/T11022, the product verification test and factory test to ensure that the product performance meets the requirements.
Technical Data-WETGZ-24/250
| Voltage Class | 12kV | 24kV |
| Continuous Current | 250A | 250A |
| AC Withstand Voltage | 42kV for 1min | 65kV for 1min |
| Partial Discharge | 13.2kV, ≤10pC | 26.4kV, ≤10pC |
| Impulse Withstand Voltage(10 times for each polarity) | 75kV | 125kV |

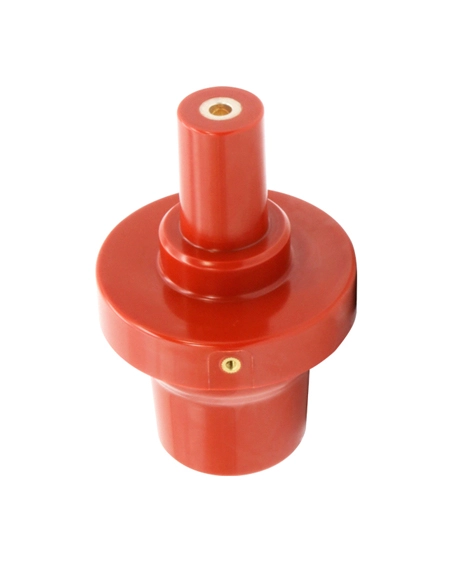

Technical Data-WEATG-CQ12/250
| Voltage Class | 12kV |
| Continuous Current | 250A |
| AC Withstand Voltage | 42kV for 1min |
| Partial Discharge | 13.2kV, ≤10pC |
| Impulse Withstand Voltage(10 times for each polarity) | 75kV |
High insulation performance: epoxy resin material provides excellent electrical insulation performance.
Chemical corrosion: suitable for all kinds of harsh environments.
High mechanical strength: able to withstand greater mechanical stress.
Long life: strong durability, long service life.
