The terminations are designed for 1-, 2-, 3-, 4- and 5-core cables with or without armour. The terminations are also applicable to 3+1, 4+1 and 3+2 cables.
| Selection Table | |||
| Voltage | Cores | Cross Section/mm² | Kit No. |
| 0.6/1(1.2)kV | 1, 2, 3, 4, 5 | 4-6 | 0.6/1kVRST-4(5, 3, 2)/(-1) |
| 10-16 | 0.6/1kVRST-4(5, 3, 2)/0 | ||
| 25-50 | 0.6/1kVRST-4(5, 3, 2, 1)/1 | ||
| 70-120 | 0.6/1kVRST-4(5, 3, 2, 1)/2 | ||
| 150-240 | 0.6/1kVRST-4(5, 3, 2, 1)/3 | ||
| 300-400 | 0.6/1kVRST-4(5, 3, 2, 1)/4 | ||
| 500 | 0.6/1kVRST-4(3, 2, 1)/5 | ||
Excellent sealing and insulation

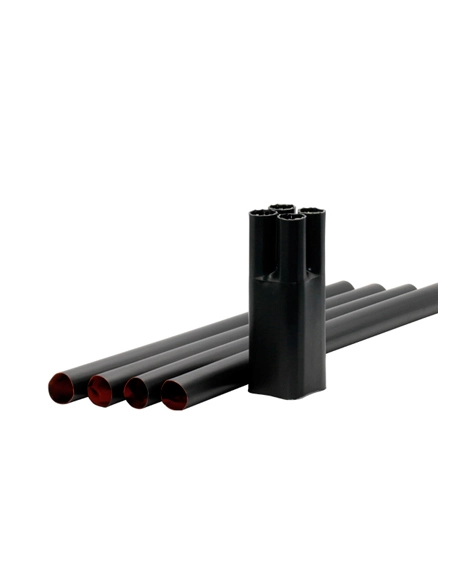

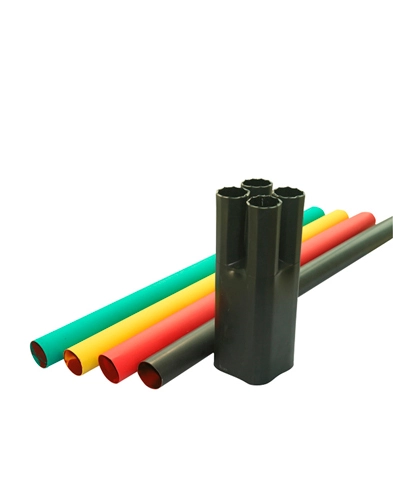

The cable crutch is sealed by a breakout inner coated with adhesive. Heat shrink insulation tubes seal between the cable lug and the bottom of the core insulation.
UV and weathering
For single core cables only an insulation tube is needed. All materials are resistant to UV and weathering.
