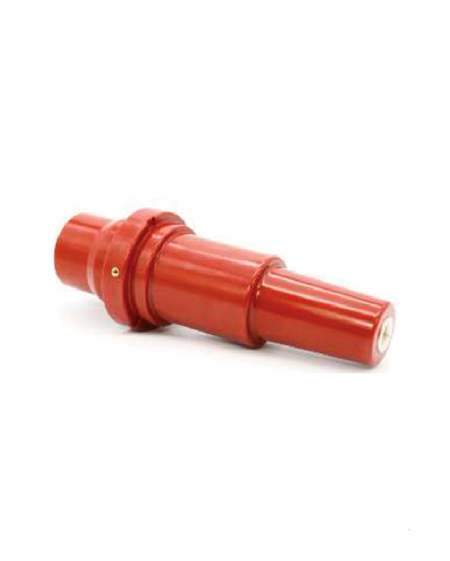

The 630A Apparatus Bushing with C-interface is widely used in medium-voltage power systems, offering high reliability in electrical connections and insulation performance, suitable for various industrial and infrastructure applications.
| Voltage Class | 12kV | |
| Continuous Current | 630A | 1250A* |
| AC Withstand Voltage | 42kV for 1 min | |
| Partial Discharge | 13.2kV, ≤10pc | |
| Impulse Withstand Voltage (10 times for each polarity) | 75kV | |
Note: * refer to that current rating shall be clearly specified when order as both bushing dimension varies.
High Current-Carrying Capacity
Feature: Rated current of 630A, supporting high-power transmission.
Advantage: Suitable for high-load scenarios, ensuring stable operation of power systems.
Excellent Insulation Performance
Feature: Made of high-quality insulating materials (epoxy resin) with superior electrical insulation properties.
Advantage: Effectively prevents arcing and leakage, ensuring safety in high-voltage environments.
