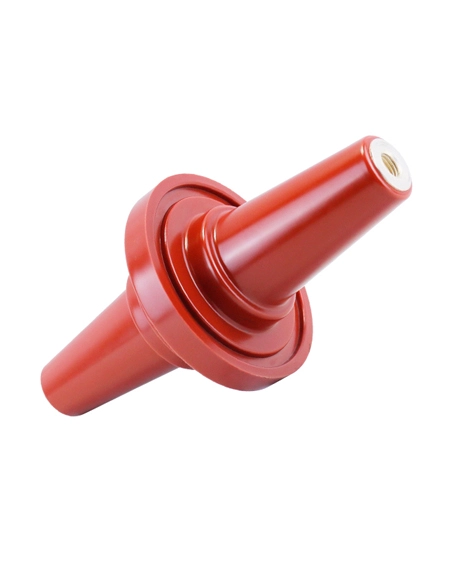

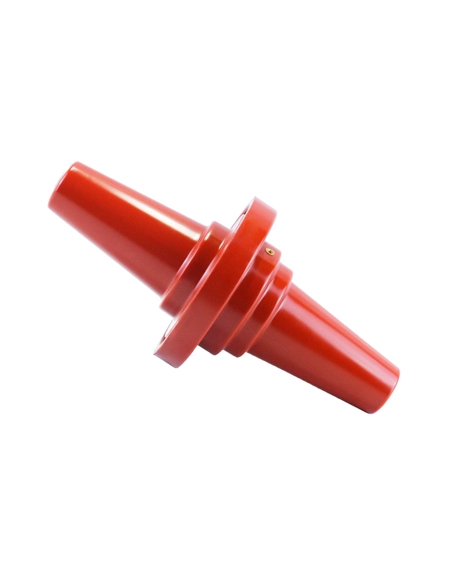

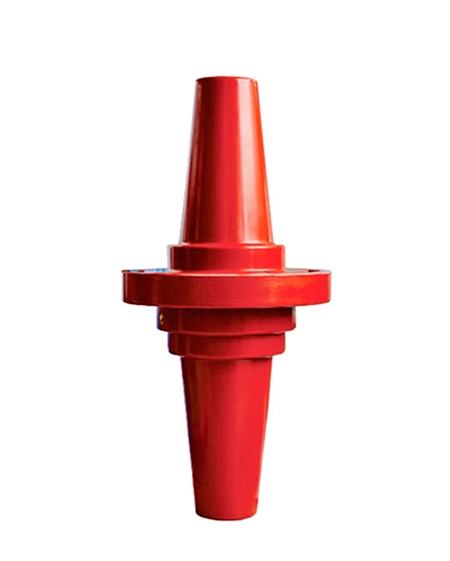

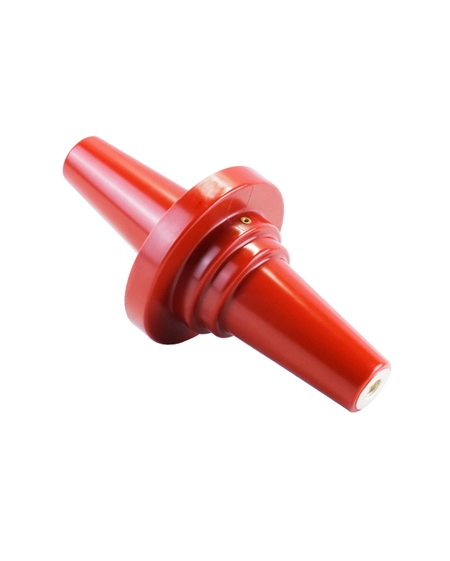

Both ends can be connected to European or American 35kV interface E type connector; one end can be sealed in SF6 or high-voltage insulating oil, and the other end can be connected to European or American 35kV interface E type connector.
This type of bushing is designed in accordance with the standard EN50181 and also complies with the American standard IEEE3886.
| Voltage Class | 40.5kV | |
| Continuous Current | 630A | 1250A* |
| AC Withstand Voltage | 95kV for 1 min | |
| Partial Discharge | 45kV, ≤10pc | |
| Impulse Withstand Voltage (10 times for each polarity) | 200kV | |
Note: * refer to that current rating shall be clearly specified when order as both bushing dimension varies.
Manufactured from high quality epoxy resin.
Meeting requirement of EN 50180 & EN 50181 type E.
100% factory tested.
In compliance with GB/T 4109(IEC60137 6.0).
