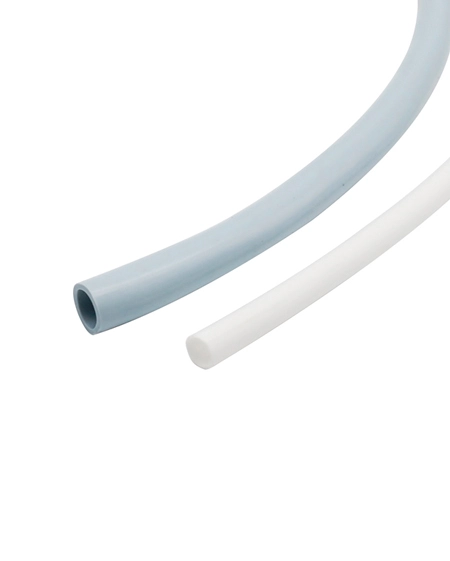

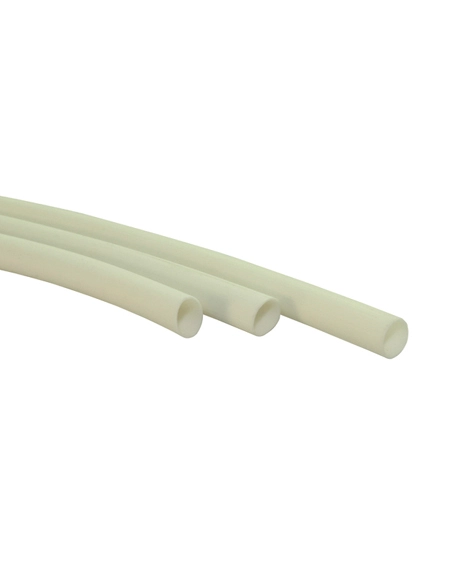

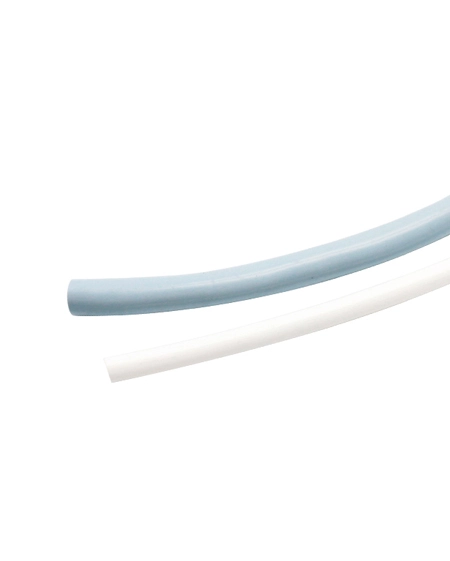

Heat Shrink Silicone Rubber Tube

Made of silicone rubber.
Used for insuation, proterction, and sheathing applications.
Standard color: Black and grey.
Other colors are available upon request.
Superior heat and cold resistance, flexibility, and electrical insulation.

 Get a Quote  PDF Download

Specification of Heat Shrink Silicone Rubber Tube

Selection Table

Spec.	As Supplied/mm		After Recovered/mm
Spec.	Inner Diameter Min	Wall Thickness (±0.3)	Inner Diameter Max	Wall Thickness (±0.3)
WRSGG-6	6	0.55	3.6	1.0

Technical Data

Property	Test Method	Standard Value
Tensile Strength	ASTM-D-638	≥4.5MPa
Elongation at Break	ASTM-D-638	≥450%
Tear Strength	ISO 34	≥20kN/m
Dielectric Strength	IEC 60243	≥20kV/mm
Volume Resistivity	IEC 60093	≥1×1012 Ω·cm
