Made of semi-rigid flame-retarded polyolefin.
Provide strong mechanical protection, strain relief, and complete environmental sealing on cable
harness assemblies.
Provided with or without adhesive lining.
Standard colour: Black.

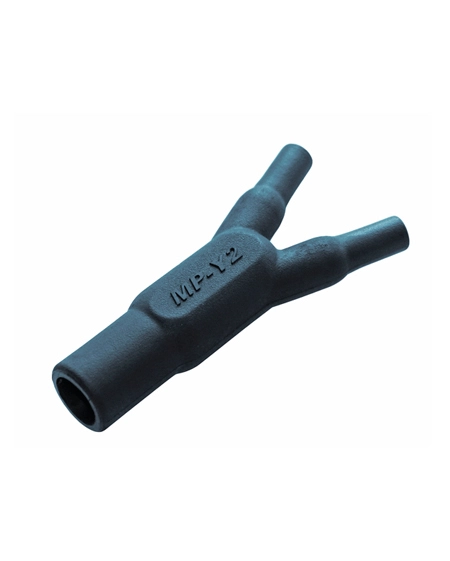

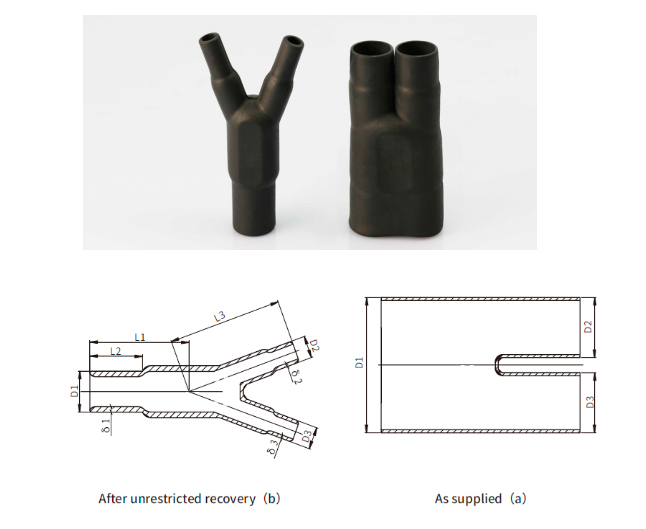

C21 Heat Shrink 2-way Outlet Shapes
| Product No. | D1 | D2, 3 | L1 ±10% | L2 ±10% | L3 ±10% | δ1 ±20% | δ2δ3 ±20% | ||
| As Supplied | After Recovery | As Supplied | After Recovery | ||||||
| C2111 | 13.5 | 6.0 | 6.6 | 3.3 | 24.0 | 15.5 | 25 | 2.0 | 1.5 |
| C2121 | 27.0 | 12.4 | 13.2 | 6.1 | 53.3 | 33.0 | 55 | 2.5 | 2.0 |

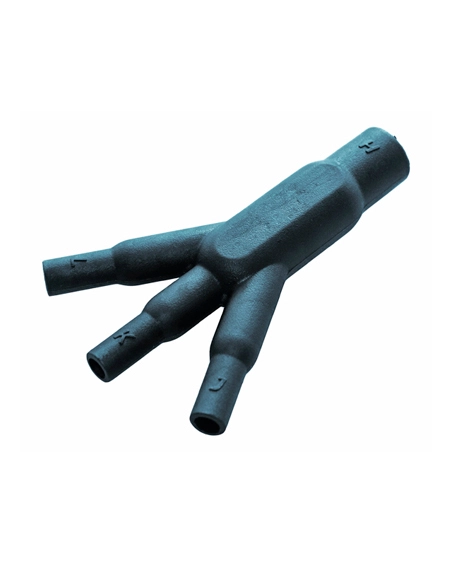

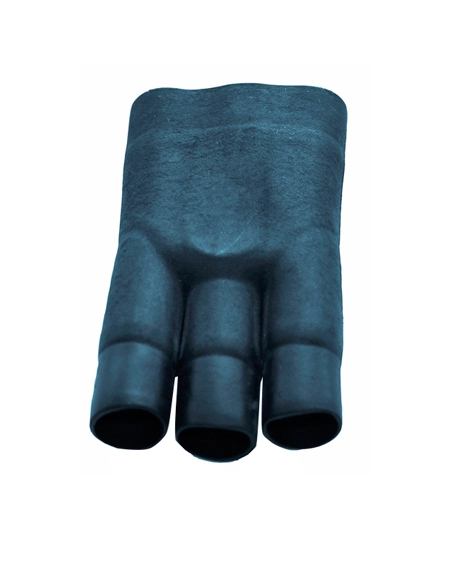

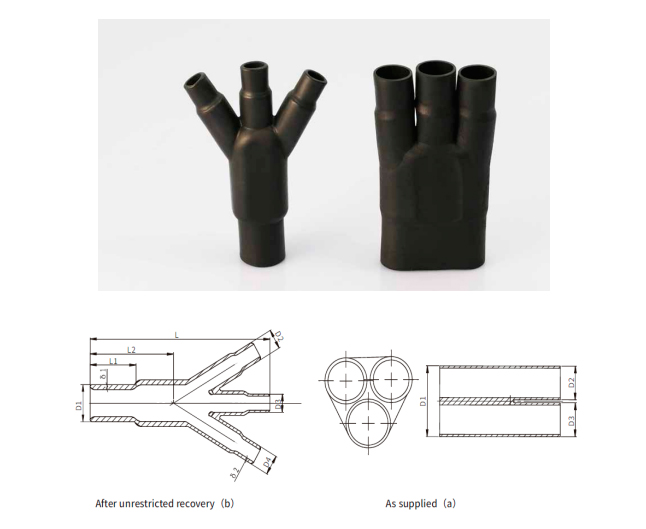

C31 Heat Shrink 3-way Outlet Shapes
| Product No. | D1 | D2, 3, 4 | L ±10% | L1 ±10% | L2 ±10% | δ1 ±20% | δ2 ±20% | ||
| As Supplied | After Recovery | As Supplied | After Recovery | ||||||
| C3111 | 14 | 6.6 | 6.6 | 3.6 | 46 | 15.7 | 31 | 2.0 | 1.5 |
| C3121 | 27 | 13.2 | 13.2 | 6.9 | 94 | 33.0 | 57 | 2.5 | 2.0 |

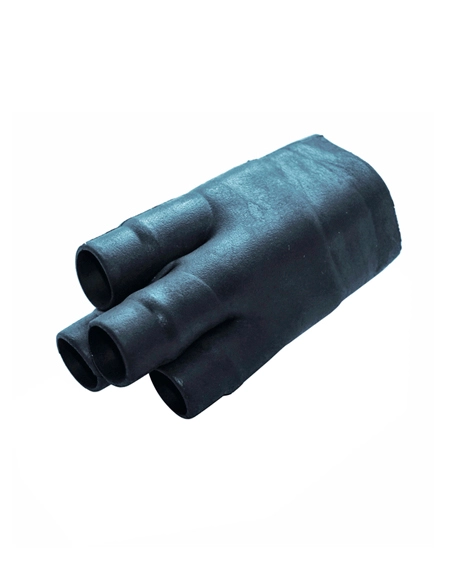

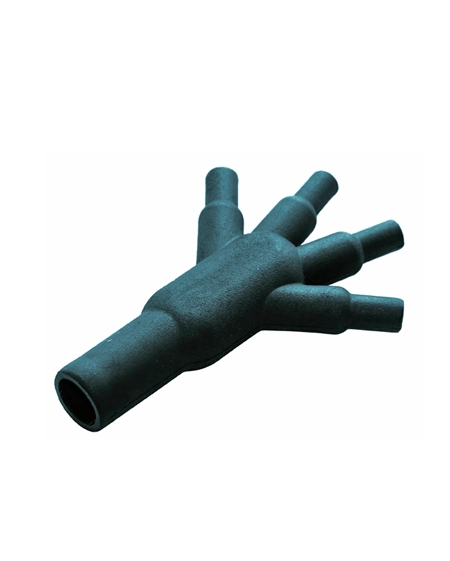

C41 Heat Shrink 4-way Outlet Shapes
| Product No. | D1 | D2, 3, 4, 5 | L1 ±10% | L2 ±10% | L3 ±10% | δ1 ±20% | δ2 ±20% | ||
| As Supplied | After Recovery | As Supplied | After Recovery | ||||||
| C4121 | 19.3 | 9.7 | 9.4 | 5.3 | 35.6 | 43.2 | 23.1 | 2.0 | 1.5 |
