Medium Voltage Cable Terminations

The indoor termination is designed for screened single core polymeric insulated MV cables up to 35kV.

The outdoor termination is designed for screened single core polymeric insulated MV cables up to 35kV. Yellow stress relief mastic is laid around the end of the screen cut. Stress control tube, together with stress relief mastic, is used to smooth out the electrical field at the cable screen end. Anti-tracking insulation tube and sealing tube seal between the end of the oversheath and the cable lug. Anti-tracking rain sheds lengthen surface creepage distance to ensure safety.

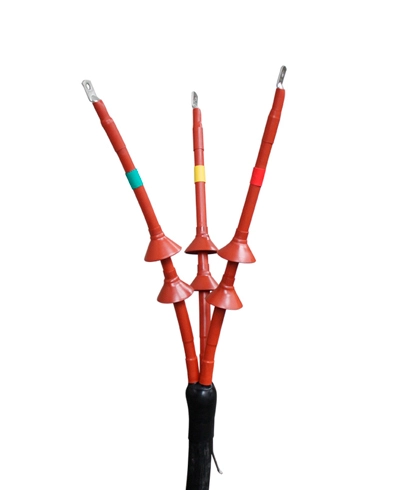

The indoor termination is designed for screened three core polymeric insulated MV cables up to 35kV. Yellow stress relief mastic is laid around the end of the screen cut. Stress control tube, together with stress relief mastic, is used to smooth out the electrical field at the cable screen end. All phase cores are covered with anti-tracking insulation tube and sealing tube. Anti-tracking rain sheds lengthen surface creepage distance to ensure safety. The crutch area is sealed and protected with an adhesive-coated breakout which is installed over the cores at the end of oversheath.

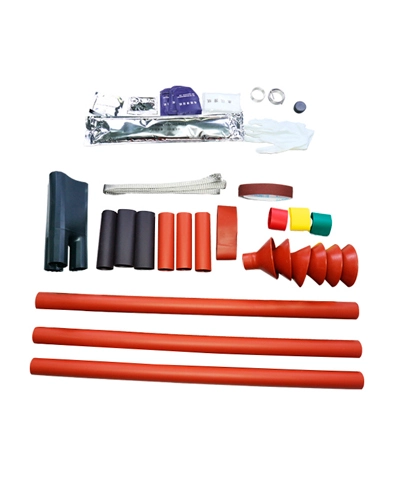

The outdoor termination is designed for screened three core polymeric insulated MV cables up to 35kV. Yellow stress relief mastic is laid around the end of the screen cut. Stress control tube, together with stress relief mastic, is used to smooth out the electrical field at the cable screen end. All phase cores are covered with anti-tracking insulation tube and sealing tube. Anti-tracking rain sheds lengthen surface creepage distance to ensure safety. The crutch area is sealed and protected with an adhesive-coated breakout which is installed over the cores and the end of oversheath.

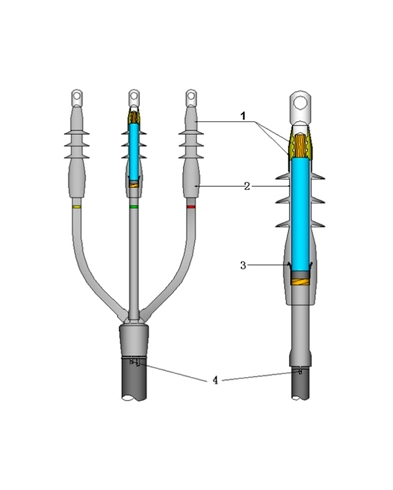

The medium Voltage 1-core Indoor Cold Shrink Termination is an indoor terminal processing accessory for medium voltage cable systems (usually voltage levels of 6kV to 35kV), specially designed for single core cables.

The medium voltage three-core indoor cold shrink cable terminal is an indoor terminal processing accessory for medium voltage cable systems (usually voltage levels of 6kV to 35kV), specially designed for three-core cables.

The medium voltage single-core outdoor cold shrink cable termination is an outdoor terminal processing accessory for medium voltage cable systems (usually voltage levels of 6kV to 35kV), specially designed for single-core cables.

Medium voltage 3-core outdoor cold shrink cable terminal is an outdoor terminal processing accessory for medium voltage cable systems (usually voltage levels of 6kV to 35kV), specially designed for three-core cables.

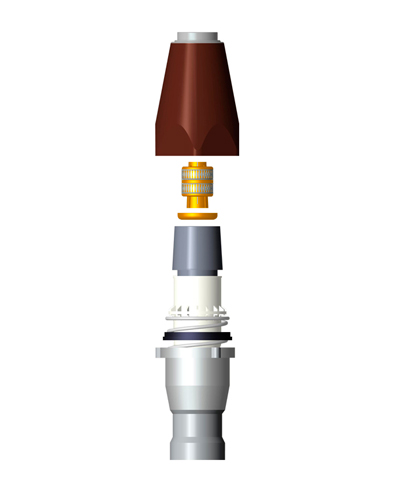

Inner cone plug-in terminations are suitable for C-GIS or transformers. They are used to connect power cables and equipment to provide a stable channel for the safe transportation of electricity.
